In modern architectural engineering and high-performance commercial construction, CE Certified Aluminum Framed Glass Doors represent the pinnacle of structural durability, acoustic isolation, and thermal efficiency. As regulatory standards across the European Union (EN 14351-1), the United Kingdom (UKCA), North America (NFRC/AAMA), and Oceania (AS2047) tighten regarding thermal envelope performance and operational safety, direct procurement managers, commercial builders, and architectural specifiers require absolute clarity on extrusion metallurgies, glass thermal build-ups, structural wind-load capacity, and hardware engineering integrity.
This technical whitepaper provides an exhaustive procurement guide for international buyers sourcing high-grade aluminum glass doors from tier-one OEM/ODM manufacturing facilities in Foshan, China—the undisputed global capital of architectural aluminum extrusion. Founded in 1993, **Window Wurx Industry Co., Ltd. (Richocean)** operates a 20,000 square meter smart fabrication complex equipped with three automated precision lines, delivering fully compliant, factory-direct glazing solutions for landmark residential complexes, luxury hospitality projects, and high-traffic commercial envelopes worldwide.
CE marking for exterior pedestrian doorsets and windows is governed strictly by EN 14351-1:2006+A2:2016. Procurement teams must verify that any prospective China manufacturer provides valid, third-party laboratory test reports issued by Notified Bodies (NB) covering the following essential performance characteristics:
Calculated under EN ISO 10077-1 and EN ISO 10077-2 standards. Our polyamide 66 reinforced with 25% glass fiber (PA66-GF25) thermal breaks achieve profile $U_f$ values down to 1.1 W/m²K, translating to total assembly $U_w$ performance as low as 0.85 W/m²K when paired with argon-filled triple Low-E glazing units.
Tested in accordance with EN 1026 (Air) and EN 1027 (Water). Systems are engineered to achieve Class 4 Air Permeability (600 Pa limit) and Class E1050 Water Tightness (1050 Pa static pressure head), ensuring absolute protection against extreme atmospheric conditions.
Structural deflection tests executed up to Class C5 / B5 (2000 Pa wind pressure with relative frontal deflection $<1/300$). High tensile 6063-T5 and 6060-T66 aluminum alloys guarantee structural integrity under severe hurricane-force draft conditions.
Beyond EN 14351-1, global buyers servicing Australasia must verify compliance with **AS2047** (Windows and External Glazed Doors in Buildings) and **AS1288** (Glass in Buildings Selection and Installation). Window Wurx dual-certifies product series, streamlining cross-border compliance for commercial contractors operating across multi-continental project portfolios.
Evaluate structural, thermal, and acoustic parameters across our core CE Certified aluminum framed glass door operational configurations:
| Door System Type | Alloy Specification | Thermal Break Width | Glass Build-Up Option | Thermal U-Value ($U_w$) | Acoustic Rating (Rw) | Max Leaf Height |
|---|---|---|---|---|---|---|
| Heavy-Duty Lift & Slide | 6063-T6 Structural Profile | 24mm – 34mm PA66GF25 | 6mm Low-E + 16Ar + 6mm Tempered | 1.1 – 1.4 W/m²K | 38 dB – 44 dB | 3,800 mm |
| Thermal Break Casement / French | 6063-T5 Architecture Grade | 20mm – 28mm PA66GF25 | 5mm Low-E + 12Ar + 5mm Tempered | 1.2 – 1.5 W/m²K | 36 dB – 42 dB | 2,800 mm |
| Ultra-Slim Minimalist Sliding | 6060-T66 High-Tensile Alloy | 30mm Polyamide Matrix | 8mm Low-E + 14Ar + 8mm Laminate | 1.0 – 1.3 W/m²K | 40 dB – 45 dB | 4,500 mm |
| Bi-Folding Exterior Doorset | 6063-T5 Precision Extrusion | 20mm – 24mm PA66GF25 | 6mm Low-E + 12Ar + 6mm Tempered | 1.3 – 1.6 W/m²K | 35 dB – 40 dB | 3,200 mm |
| Luxury Anti-Theft Pivot System | Cast Alloy + 6063 Frame | 28mm Thermal Barrier | 10mm Laminated + 12Ar + 8mm Low-E | 1.2 – 1.6 W/m²K | 42 dB – 48 dB | 4,000 mm |
Selecting an aluminum door manufacturer in China requires evaluating physical factory infrastructure, raw material sourcing standards, quality assurance (QA) protocols, and global export packaging security. Window Wurx Industry Co., Ltd. provides distinct structural advantages over trading intermediaries:
Located in Nanhai District, Foshan, our manufacturing hub integrates automated double-head cutting saws, 4-axis CNC machining centers, automatic corner crimping units, and robot-assisted sealant injection lines to eliminate human dimensional error.
We utilize primary aluminum ingots with pure chemical composition (Fe content < 0.20%), avoiding contaminated scrap aluminum. Surface finishes feature AkzoNobel or PPG PVDF fluorocarbon coatings (AAMA 2605 compliant) resisting salt-spray corrosion for over 25 years.
Long-distance sea transport damages delicate profiles if unprotected. Every door leaves our factory encased in: 1. Surface PE protective film; 2. EPE shock-absorbent foam wrap; 3. Heavy-duty corner guards; 4. Waterproof shrink wrap; 5. Fumigation-free plywood crates with internal container-bracing hardware.
Different building typologies demand tailored opening mechanics, hardware configurations, and glazing specs. Our engineering department recommends the following optimized configurations:
Recommended System: Ultra-Slim Thermal-Break Sliding Doors & Heavy-Duty Lift & Slide Doorsets.
Technical Rationale: Coastal estates demand extreme wind pressure resistance (Class C5) and maximum glass transparency. Utilizing heavy-duty stainless steel track rollers rated for 400kg per sash, paired with triple-laminated Low-E glass, provides panoramic views while guarding against salt corrosion and high wind loads.
Double Low-E Insulated Glass Unit (IGU) Architecture:
Anti-Intrusion & Fire Protection Parameters:

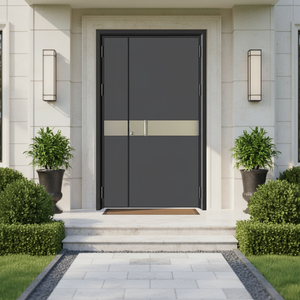

Recommended System: Cast Aluminum Pivot Doors & Modern Commercial Bi-Folding Systems.
Technical Rationale: Commercial entryways require high structural rigidity, anti-theft resistance, and reliable heavy-cycle usage. Cast aluminum doors with reinforced pivot hinges offer exceptional impact resistance, security, and fire protection.
The global architectural glazing sector is undergoing rapid technological evolution driven by decarbonization targets, digital building management, and minimalist design trends. International procurement directors must align their supply chains with the following emerging trends:
Traditional inert gas filled double-glazing is increasingly transitioning toward Vacuum Insulated Glass (VIG). VIG eliminates convective heat transfer, achieving $U_g$ values down to 0.4 W/m²K in profiles as thin as 8.3mm. Procurement will shift toward ultra-narrow thermal-break profiles tailored for VIG integration.
Architectural preference strongly favors concealed outer frames and interlocking stiles with visible widths below 20mm. Manufacturing such systems requires ultra-high-yield 6060-T66 aluminum alloys and structural silicone structural bonding (SSG) to support massive glass loads without frame distortion.
Commercial and luxury residential doors now incorporate built-in linear actuators, concealed motorized drive systems, and IoT sensors compatible with KNX and Crestron building automation networks. Factory-installed concealed wiring channels are fast becoming a mandatory OEM specification.
European ESG compliance mandates clear Environmental Product Declarations (EPD). Direct manufacturers utilizing low-carbon hydroelectric aluminum smelting and closed-loop scrap recycling offer significant supply chain compliance advantages for green-certified developments (LEED / BREEAM).
Direct answers from our engineering and export compliance officers addressing critical buyer concerns:
Our complete window and door system portfolio is manufactured in strict alignment with EN 14351-1:2006+A2:2016. Factory production control (FPC) is audited per ISO 9001:2015. We provide full Notified Body test reports detailing Air Permeability (EN 1026 - Class 4), Water Tightness (EN 1027 - Class E1050), Wind Load Resistance (EN 12210 - Class C5), and Thermal Transmittance calculations (EN ISO 10077). Additionally, selected product series carry Australian AS2047 certification issued by independent accredited testing laboratories.
Yes, 100% of our production is executed to bespoke project drawings. Our dedicated in-house engineering team converts architectural elevation plans into precise production CAD/BIM shop drawings. Size, opening configuration (sliding, casement, bifold, pivot), frame thickness, polyamide thermal break depth, glass specification (tint, reflective, Low-E, laminated acoustic), hardware brand selection, and frame color (including dual-color powder coating) are engineered precisely to your exact project parameters.
We implement a strict 5-layer export packaging protocol. First, an anti-scratch protective film coats all aluminum profile surfaces. Second, units are wrapped in high-density EPE shock-absorbent foam. Third, rigid cardboard corner guards protect all 4 corners. Fourth, the unit is wrapped in moisture-barrier stretch wrap. Fifth, products are loaded into fumigation-free solid plywood crates equipped with internal timber bracing and rubber buffer blocks to eliminate movement within shipping containers.
We provide a flexible, factory-direct dealer and contract partnership model that avoids costly franchise fees. Our support package includes direct factory pricing, dedicated engineering assistance for bidding on large tenders, customizable white-label product brochures, structural engineering shop drawings, hardware sample boxes, and priority scheduling across our 3 automated production lines.
Once CAD shop drawings and color swatches receive formal engineering sign-off, standard production lead time for custom sample units or single-villa packages is 15 to 20 business days. Full container load (20GP / 40HQ) orders for large commercial developments typically require 25 to 35 business days, depending on hardware availability and custom powder-coating finishes.
We partner with premier global hardware manufacturers based on project specifications. Standard choices include German Roto Frank, Hoppe, Siegenia-Aubi, GU (Gretsch-Unitas), as well as top-tier Asian hardware brands like Kin Long and CMECH. All hardware undergoes rigorous salt-spray testing (NSS test 96 hours+) to prevent corrosion in humid or coastal environments.
We back our manufacturing quality with comprehensive warranties: 10 to 20 years on structural aluminum extrusions against material defects; 10 years on insulated glass units against seal failure and internal fogging; 5 to 10 years on surface finishes (powder coating/PVDF) depending on atmospheric environment; and 5 years on mechanical hardware components.
Send your architectural elevation drawings, door schedules, or performance targets directly to our technical export team. We provide rapid shop-drawing evaluation and transparent factory-direct pricing within 24 hours.
