Engineered for high structural stability, maximum thermal performance, and low-profile aesthetics. All units are produced in our Foshan automation facility under strict ISO9001, CE, and AS2047 standard operating procedures.
Operating from Foshan—China's global capital for architectural aluminum extrusion—Window Wurx Industry Co., Ltd. brings over 30 years of advanced metallurgical engineering, custom die creation, and international project execution.
We utilize high-purity primary aluminum extrusions treated to T5/T6 tempers. This ensures superior tensile strength, rigid wall thickness (1.4mm–2.0mm), and dimensional stability resistant to wind deflection and frame twisting.
With fully equipped R&D die-casting labs, we transform client CAD/BIM specifications into bespoke profiles. From specialized shed flush flanges to integrated mounting channels, we deliver private-label solutions effortlessly.

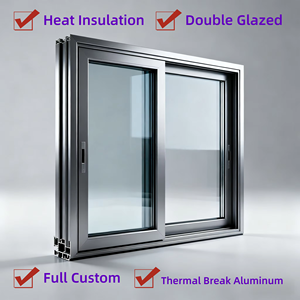

Our thermal break shed windows feature high-grade Polyamide PA66-GF25 structural insulation strips. This breaks the thermal bridge, eliminating condensation risks and cutting HVAC energy costs in conditioned sheds or offices.
Available in electrostatic fluorocarbon (PVDF), powder coating, and wood-grain transfer finishes. Tested against salt spray, UV degradation, and chalking to maintain flawless color integrity across outdoor environments.
Structural window designs tested for cyclonic region compliance (AS2047 standard) and high water-head pressures. Dual EPDM rubber weatherstripping guarantees watertight sealing against torrential rainfall.
Units undergo individual shrink-wrapping, corner guards, honeycomb board lining, and solid fumigation-free wooden box crating. Engineered specifically to survive multi-modal ocean and overland transit intact.
In modern architectural design and prefabricated construction, outbuildings such as residential sheds, backyard offices, agricultural barns, and accessory dwelling units (ADUs) have evolved from crude storage units into highly functional, climate-controlled spaces. As a result, the demand for high-spec aluminum shed windows has surged worldwide. Procurement managers, building contractors, and OEM distributors are moving away from flimsy vinyl (uPVC) frames toward structurally robust, thermally isolated aluminum window assemblies engineered for longevity.
The foundation of any high-performance shed window lies in its aluminum alloy selection and profile extrusion geometry. Premium OEM/ODM manufacturers rely exclusively on 6063-T5 architectural aluminum alloy. Compared to recycled scrap aluminum, primary 6063 extrusions offer uniform tensile strength (minimum 150 MPa yield strength) and exceptional surface anodizing clarity.
As municipal building codes increasingly regulate the energy consumption of conditioned outbuildings and backyard studios, thermal insulation has become a non-negotiable procurement standard. The uninsulated single-pane glass shed window is rapidly being superseded by high-efficiency glazing configurations:
| Glazing Type | U-Factor (W/m²·K) | SHGC Range | Acoustic STC Rating | Recommended Application |
|---|---|---|---|---|
| Single Clear Tempered (5mm) | 5.6 - 5.8 | 0.75 - 0.82 | 26 - 28 dB | Basic Unconditioned Storage Sheds & Garden Hubs |
| Double Glazed Insulated (5+9A+5) | 2.7 - 3.0 | 0.60 - 0.70 | 32 - 35 dB | Standard Workshops, Garages & Barn Conversions |
| Thermal Break + Low-E Argon (5+12A+5) | 1.6 - 1.9 | 0.30 - 0.45 | 38 - 42 dB | Conditioned Backyard Offices, Tiny Homes & ADUs |
| Hurricane Impact Laminated (6+1.52PVB+6) | 2.2 - 2.5 | 0.40 - 0.50 | 40 - 45 dB | Coastal Structures, High-Wind Regions & Security Sheds |
Analyzing global B2B purchasing data across North America, Australasia, and Europe reveals key macro trends shaping the future of OEM/ODM aluminum window manufacturing:
From initial hand-drawn concept sketches to volume container shipping, our structured engineering workflow eliminates miscommunication and guarantees technical precision at every phase.
Send your project blueprints or window schedules. Our structural engineering team evaluates structural loadings, frame profiles, opening types, and glass build-ups to prepare formal shop drawings within 24 hours.
For custom ODM profile designs, our toolmaker casts high-precision extrusion dies. Sample window prototypes are assembled and tested for airtightness, operability, and surface finish before full scale roll-out.
Utilizing 3 automated CNC cutting and corner-crimping production lines, profiles are precision-milled, coated, fitted with gaskets and insulated glass units, and rigorous quality inspected at every station.
Addressing key technical, logistical, and commercial inquiries from global dealers, distributors, and construction firms.
Partner directly with Foshan's premier OEM/ODM manufacturer. Contact our engineering team today to receive detailed CAD proposals, custom quotation sheets, or factory tour invitations within 24 hours.
