Factory-direct custom engineered pivoting, sliding, folding, and louvre systems built to international building standards (AS2047, CE, NFRC).
An authoritative technical evaluation of architectural profile extrusions, glass unit configurations, thermal efficiency parameters, and hardware engineering.
Selecting an authoritative China aluminium framed glass doors manufacturer and supplier requires looking beyond surface aesthetics to understand the structural physics, metallurgy, and thermal engineering that dictate long-term operational integrity. Modern architectural trends heavily favor slim sightlines, ultra-large glass expanses, and seamless indoor-outdoor transitions. However, achieving these design goals while respecting rigid energy conservation mandates (such as Title 24, NCC Australia 2026, and European EPBD standards) demands high-grade alloy extrusion, structural thermal barriers, and precision glazing assembly.
At Window Wurx Industry Co., Ltd. (operating from Foshan—China's global aluminum processing hub), framing profiles are fabricated using primary 6063-T5 and 6060-T66 structural aluminum alloys. Compared to secondary recycled scrap aluminum used by lower-tier manufacturers, primary billet aluminum offers superior yield strength ($\ge 170 \text{ MPa}$), ultimate tensile strength ($\ge 215 \text{ MPa}$), and precise wall thickness control ranging from 1.8mm for residential casements to 3.0mm+ for heavy-duty commercial pivot and multi-track bi-fold doors.
| Parameter | Commercial Grade (6063-T6) | Residential Standard (6063-T5) | Engineering Impact |
|---|---|---|---|
| Tensile Strength | $\ge 245 \text{ MPa}$ | $\ge 205 \text{ MPa}$ | Resists structural wind deformation up to 5000 Pa. |
| Wall Thickness | 2.0mm – 3.2mm | 1.4mm – 1.8mm | Prevents deflection on large sash heights (>3000mm). |
| Surface Treatment | Qualicoat Class 3 / Fluorocarbon (PVDF) | Qualicoat Class 1 Standard Powder Coat | Guarantees 25+ years of resistance against salt spray & UV degradation. |
| Thermal Break Profile | PA66-GF25 Polyamide Strips (24mm–34mm) | Standard Resin Injection / 14.8mm PA66 | Achieves overall door system U-factors down to $0.85 \text{ W/m}^2\text{K}$. |
Uninsulated aluminum exhibits high thermal conductivity ($k \approx 200 \text{ W/m}\cdot\text{K}$), leading to thermal bridging, indoor condensation, and energy loss. To counteract this, modern broken bridge aluminum doors utilize precision-extruded Polyamide PA66 reinforced with 25% glass fiber (PA66-GF25). These thermal isolation bars join the interior and exterior aluminum extrusions, reducing frame thermal conductivity by over 95%.
Furthermore, sound transmission loss ($R_w$) is optimized through multi-chamber frame geometries coupled with double or triple-glazed Insulated Glass Units (IGU). By combining laminated acoustic glass (e.g., 6mm Low-E + 12Ar + 4mm + 0.76PVB + 4mm) with continuous EPDM triple-gasket sealing systems, ambient outdoor noise levels exceeding 75 dB are dampened down to a quiet 32 dB indoor baseline.
Simply specifying "double glass" is insufficient for modern high-performance builds. Factory specs should demand argon gas filling at $\ge 90\%$ concentration paired with soft-coat Off-Line Magnetron Sputtering Low-E glass on surface #2 or #3. This configuration reflects long-wave infrared heat while permitting high visible light transmittance (VLT $\ge 70\%$).
Detailed architectural breakdown of exterior door operating mechanisms manufactured in our Foshan production center.

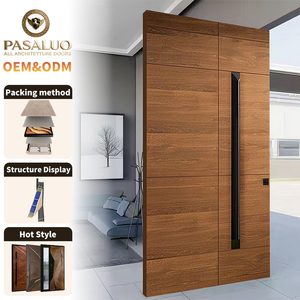

Designed for luxury grand villa entrances, custom pivot entry doors utilize heavy-duty bottom-pivot floor springs capable of carrying single leaf weights up to 500 kg. Incorporating multi-point hydraulic locking mechanisms and composite aluminum-wood insulated cores, they provide maximum security with smooth 360-degree fingertip operation.
Inquire Spec SheetEngineered with top-hung heavy-duty stainless steel carriage rollers and bottom guide tracks, our bi-fold systems fold effortlessly to create up to 95% unobstructed open spaces. Outfitted with dual-E-seal gaskets and thermal break profiles, they withstand harsh coastal storms while offering zero threshold flush floor designs.
Inquire Spec SheetFeaturing narrow interlock sightlines (down to 20mm), motorized or manual soft-close dampening, and concealed outer frames, these systems maximize daylight intake. Bottom tracks feature integrated stainless steel drainage channels to prevent water ingress during severe weather events (water resistance rated up to 700 Pa).
Inquire Spec SheetFusing the warmth of interior natural timber (Oak, Teak, Pine) with the weather-resistant exterior shell of extruded aluminum. Ideal for cold climates requiring ultra-low thermal transmittance ($U_w \le 0.75 \text{ W/m}^2\text{K}$) and classic architectural styling compliant with North American standards.
Inquire Spec SheetTested rigorously against cyclic wind pressures and heavy missile impact standards (ASTM E1886 / E1996, Florida Building Code HVHZ compliance). Built using SGP (SentryGlas®) structural interlayers and heavy-gauge reinforced aluminum extrusions to prevent blowout during Category 5 hurricanes.
Inquire Spec SheetDesigned for tropical and subtropical high-ventilation environments. Featuring adjustable motorized or manual tempered glass blades with interlocked aluminum framing. Provides 100% natural airflow management while maintaining privacy, rain defense, and solar shading flexibility.
Inquire Spec SheetForward-looking insights for developers, general contractors, and door importers navigating global economic and environmental regulatory shifts.
Global climate mandates are compelling importers to scrutinize embodied carbon in building materials. Future-ready procurement strategies require sourcing aluminum extrusions manufactured using hydro-electric power rather than coal-fired energy. Our production facility is transitioning to low-carbon primary aluminum billets with verified EPD (Environmental Product Declaration) certificates, reducing CO2 emissions per ton of extruded profile by up to 65%.
Electrochromic PDLC (Polymer Dispersed Liquid Crystal) privacy glass and Building-Integrated Photovoltaic (BIPV) glass panels are rapidly moving from niche luxury projects to commercial standard. Modern aluminum framing systems must feature hidden wiring channels, integrated transformer compartments, and smart home protocol automation (Zigbee, Matter, KNX) built directly into the sash mullions.
Architects are pushing the boundaries of daylight ratios. The market is shifting toward full-height glass walls where hardware, tracks, hinges, and drainage pathways are 100% embedded into floor, ceiling, and wall cavities. Aluminum door profiles are being engineered with ultra-high modulus carbon-reinforced polymers to permit sashes up to 4.5 meters in height while retaining slim frame profiles.
Governments across North America, Europe, Australia, and the Middle East are enforcing stricter maximum allowable U-values and solar heat gain coefficients (SHGC). Suppliers who cannot provide third-party accredited thermal simulations (NFRC, LBNL THERM modeling) and physically tested AS2047/CE certificates will be excluded from international commercial tenders.
Foshan's Premier Custom Aluminum Window & Door Manufacturing Partner Since 1993
Founded in 1993 in Nanhai District, Foshan City, Guangdong Province, Window Wurx Industry Co., Ltd. has grown into an international powerhouse in custom architectural glazing. Operating a state-of-the-art 20,000 square meter production workshop staffed by over 150 skilled fabricators and engineers, our facility runs 3 automated precision extrusion and assembly lines. We achieve an annual production output that reliably supports large-scale multi-family developments, hotel projects, and luxury residential estates around the globe.
Every unit undergoes strict quality control tests prior to packing, including wind load deflection testing ($L/175$), air permeability audits, corner joint tension testing, and hardware cycle testing exceeding 100,000 operational opens.
Eliminating transit damage is crucial for international orders. Products are protected with PE protective film, EPE foam wrapping, rigid corner guards, and fully sealed fumigation-free plywood crates reinforced with internal shock-absorbing container bracing.
We empower regional distributors, builders, and architects with direct engineering drawing support (CAD/BIM), rapid sample turnaround, non-compete territory protection, and competitive factory-direct pricing tiers.
Answers to technical, regulatory, and commercial inquiries routinely raised by international procurement managers.
Our aluminum door and window systems are independently tested and certified for key global markets. We carry CE certification for the European Union (compliant with EN 14351-1), AS2047 & AS1288 certification verified by NATA-accredited laboratories for Australia and New Zealand, and NFRC energy ratings for North America. Full test reports for structural wind load (ASTM E330), air infiltration (ASTM E283), water penetration (ASTM E331), and acoustic insulation (ISO 717-1) are made available during CAD shop drawing approval.
Yes. 100% of our production is made-to-order according to project architectural plans. We specialize in non-standard sash heights, angled frames, and custom configurations. Furthermore, using broken bridge thermal break profiles, we provide dual-color (two-tone) anodizing or powder coating—allowing you to specify a dark fluorocarbon PVDF color for the exterior façade while keeping a warm woodgrain or crisp white finish for interior living spaces.
Our standard manufacturing lead time ranges between 25 to 35 business days following official approval of shop drawings and glass deposit confirmation. For custom extruded profile dies or special mill finishes, lead time may extend by 7–10 days. We maintain a flexible MOQ policy: we support single bespoke luxury villa packages ($MOQ = 1 \text{ house set}$) up to high-volume commercial projects requiring full container loads ($FCL$).
Every finished door unit undergoes a 5-layer protective packing protocol. First, glass and aluminum surfaces are wrapped in non-residue protective PE film. Corners are fitted with reinforced plastic guards. Sashes are wrapped in shock-absorbing EPE foam, packed into solid, fumigation-free IPPC plywood crates, and secured with heavy-duty polyester strapping. Inside ocean containers, crates are steel-bolted and timber-braced against sea vibration and motion.
Hardware failure is the leading cause of door malfunction. We standardly offer premium European hardware options, including German SIEGENIA, HOPPE, GU, and ROTO hardware systems. For cost-conscious projects requiring exceptional durability, we supply top-tier Chinese hardware such as HOPO and KIN LONG, backed by a written 10-year functional warranty.
Simply click our online live chat button or email your architectural elevation drawings, window/door schedules, and target performance specs (wind load, glass build-up, U-value targets) to our engineering department. Our team will review your files, generate precise CAD shop drawings, and issue a transparent itemized quotation within 24 hours.
Partner with China's leading aluminum glass door manufacturer. Contact our Foshan engineering team today for factory-direct quotes, CAD technical drawings, and material sample kits.
