The industrial and residential outbuilding sectors are undergoing an unprecedented architectural transformation. Historically regarded as utilitarian storage structures requiring only basic single-glazed vinyl or corrugated steel openings, modern sheds—encompassing luxury backyard offices, agrarian workshops, micro-factories, residential sunrooms, and commercial warehousing—now demand high-performance thermal envelopes. Sourcing from top trusted aluminium shed windows manufacturers and factories has become a strategic priority for B2B importers, general contractors, and structural prefabricated building distributors worldwide.
Aluminum (Al-Mg-Si alloy family) has firmly established itself as the structural material of choice over uPVC and traditional timber. Its exceptional strength-to-weight ratio allows for ultra-slim frame profiles, maximum daylight harvest, and superior wind load resistance up to 3000 Pa under extreme atmospheric testing. As thermal performance mandates such as the European EN ISO 10077-2 and North American NFRC guidelines extend to secondary buildings and accessory dwelling units (ADUs), structural aluminum fenestration integrated with advanced thermal barriers is no longer an optional upgrade—it is a core engineering requirement.
High-tensile primary aluminum alloy providing yield strengths exceeding 170 MPa, ideal for heavy wind-load outbuilding applications.
25% glass fiber reinforced thermal breaks isolating outer and inner profile chambers to prevent thermal bridging and condensation.
Fluoropolymer PVDF and electrostatic powder coatings providing 20+ years of UV resistance, anti-corrosion, and color retention.
To assist procurement directors and structural engineers in evaluating supply chain specifications, the matrix below details the standardized technical parameters across our primary extrusion lines:
| System Type | Alloy Grade & Temper | Thermal U-Value (W/m²K) | Wind Load Resistance (Pa) | Water Penetration (Pa) | Acoustic Rating (Rw) |
|---|---|---|---|---|---|
| Glass Louver Vent Systems | 6063-T5 (1.4mm profile) | 2.8 - 3.2 (Single/Dual) | 1500 Pa - 2200 Pa | 300 Pa - 450 Pa | 28 dB - 34 dB |
| Heavy-Duty Sliding Systems | 6063-T6 (1.8mm profile) | 1.6 - 2.1 (Insulated Low-E) | 2500 Pa - 3500 Pa | 450 Pa - 600 Pa | 32 dB - 38 dB |

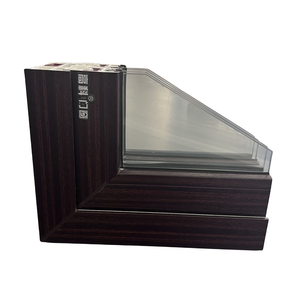

| Thermal-Break Casement | 6063-T5 (2.0mm profile) | 1.1 - 1.5 (Triple Glazed) | 3000 Pa - 4500 Pa | 600 Pa - 900 Pa | 36 dB - 44 dB |

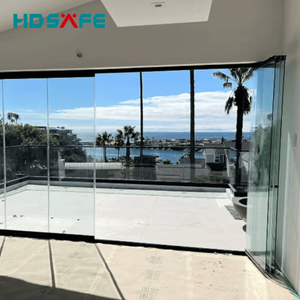

| Slim-Frame Bifold Glazing | 6063-T6 (2.0mm profile) | 1.4 - 1.8 (Dual Insulated) | 2000 Pa - 3000 Pa | 400 Pa - 550 Pa | 34 dB - 40 dB |

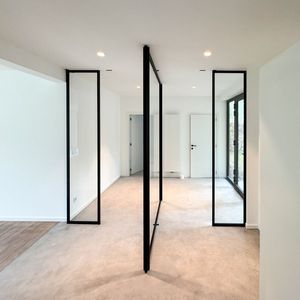

| Architectural Pivot / Swing | 6063-T6 (2.5mm heavy wall) | 1.5 - 1.9 (Double Low-E) | 2500 Pa - 3800 Pa | 500 Pa - 700 Pa | 35 dB - 42 dB |
*Values tested in compliance with AS2047, ASTM E330, and EN 12207 standard laboratory conditions. Custom structural configurations available upon technical drawing review.
The global aluminum fenestration market is moving rapidly toward sustainable, highly automated, and thermally intelligent systems. Industry buyers who partner with forward-thinking factories can capture market share by capitalizing on four critical supply-chain shifts over the coming decade:
Environmental regulations such as the European Union’s Carbon Border Adjustment Mechanism (CBAM) are compelling commercial buyers to track the embedded carbon footprint of imported metal building components. Leading Foshan aluminum factories are increasingly shifting to low-carbon primary aluminum smelted with hydroelectric power, alongside post-industrial recycled scrap (up to 75% recycled billet content). This lowers the carbon footprint per kilogram of aluminum from 18 kg CO2e down to less than 4 kg CO2e, enabling compliance with strict green building standards like LEED v4.4 and BREEAM.
The rapid expansion of offsite construction and modular steel-framed shed manufacturing demands window assemblies engineered for rapid slot-in installation. Modern aluminum shed window factories are transitioning from knocked-down (KD) shipping kits to pre-assembled, structurally sub-framed modular fenestration units. Integrated flashing fins, pre-installed perimeter sealing tapes, and pre-adjusted multi-point locking hardware allow job site installation times to be cut by up to 65%.
Standard double-pane insulated glass units (IGUs) are gradually giving way to hybrid low-profile glazing. Vacuum Insulated Glass (VIG) technology—which achieves a center-of-glass U-value down to 0.60 W/m²K in a total glass thickness of under 10mm—is being integrated into ultra-slim aluminum shed window profiles. This permits lightweight outbuildings to maintain residential-grade internal climate control without requiring deep, bulky window frames.
As sheds evolve into remote work hubs, data centers, and hydroponic agricultural spaces, automated micro-ventilation is becoming standard. Embedded 24V linear actuators connected to IoT climate sensors allow louver and awning shed windows to open automatically based on interior humidity, CO2 levels, or rain detection. Aluminum extrusions are now engineered with internal wireways to conceal smart home wiring directly inside the sash.
Headquartered in Foshan, Guangdong Province—the epicenter of global aluminum extrusion and hardware manufacturing—Window Wurx Industry Co., Ltd. has established itself as an authoritative OEM/ODM partner for international buyers since 1993.
Equipped with 3 fully automated extrusion lines, precision CNC machining centers, and double-head mitre cutting stations ensuring dimensional tolerances within ±0.5mm.
System solutions hold official AS2047 (Australia), NFRC / AAMA (North America), and CE (Europe) compliance, verified by independent third-party laboratory testing.
In-house vertical powder coating and anodizing lines offer customized dual-color thermal break extrusions—matching external cladding and interior decor simultaneously.
Every window unit undergoes custom foam corner wrapping, protective film wrapping, shrink wrapping, and packaging inside fumigation-free solid timber crates for zero-defect transit.
Direct engineering answers to technical queries raised by global importers, project engineers, and window distributors:
